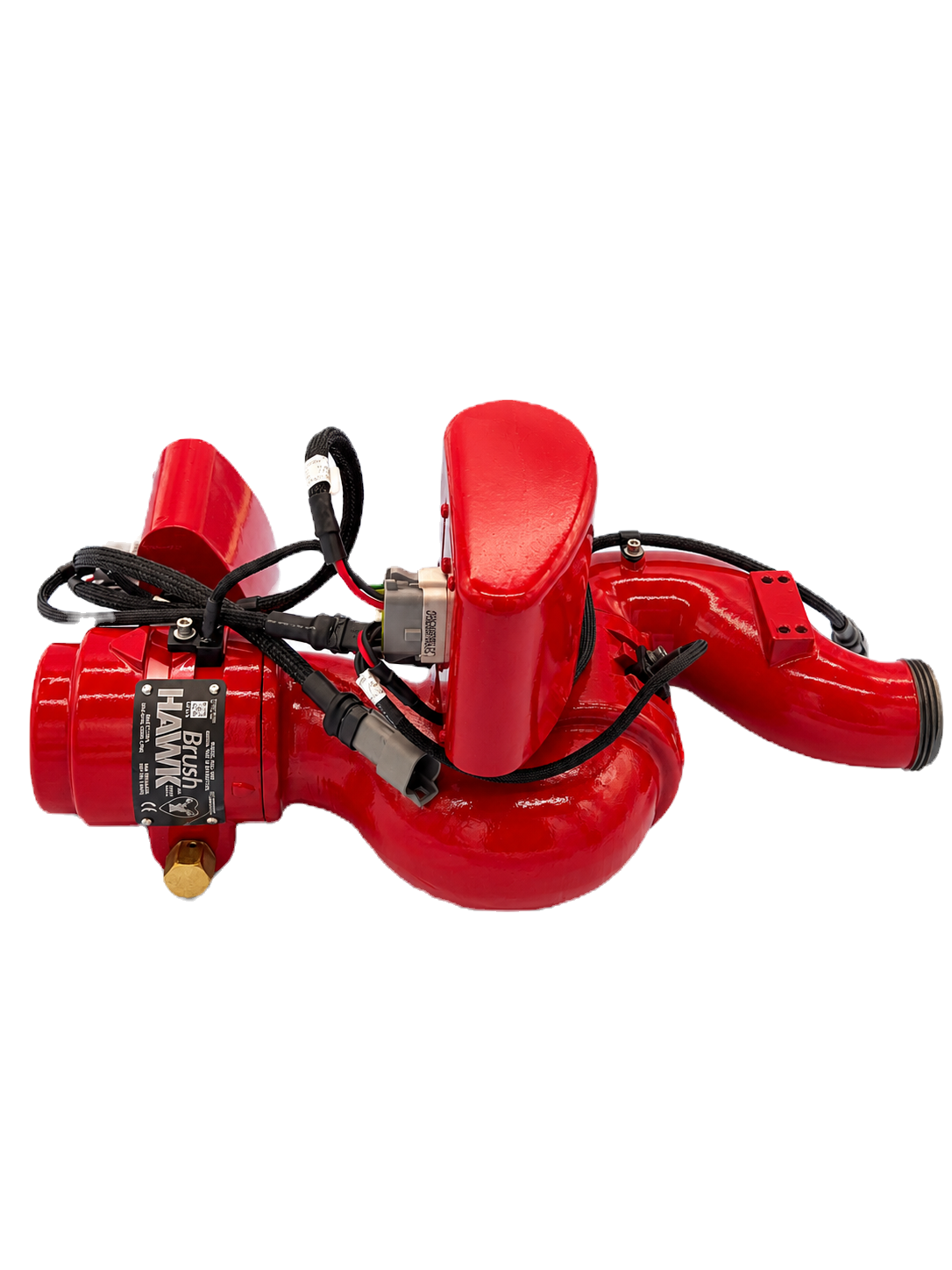

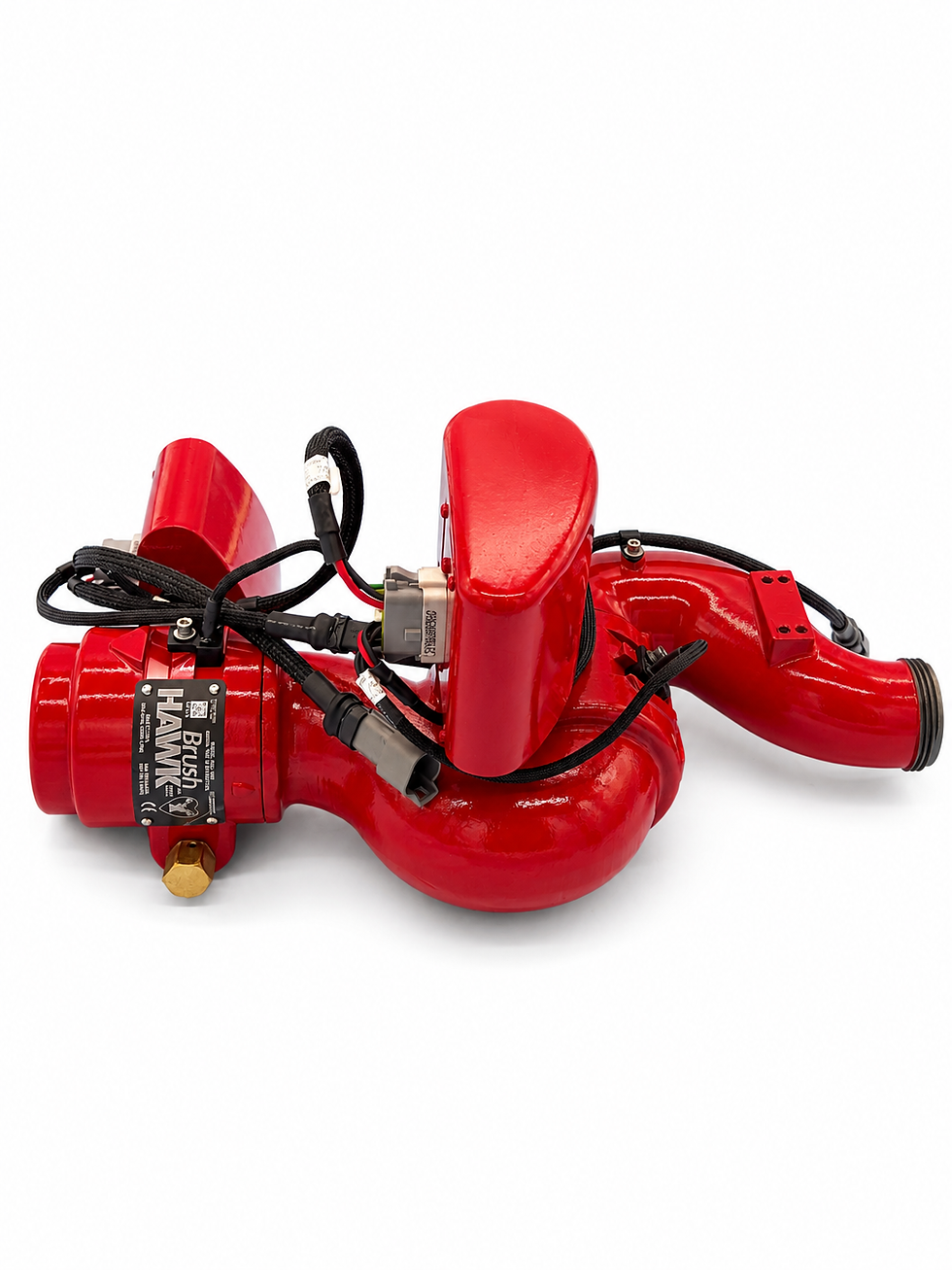

Elkhart Brass BrushHawk Electric Monitor

Built for reliable high-volume water control, this electric remote-control monitor delivers up to 500 GPM while handling pressures up to 200 PSI. Its lightweight aluminum body, hard-anodized waterway, stainless steel bearings, and enclosed stainless worm gears provide long-lasting durability in tough operating environments.

The monitor is available with 1.5" or 2.0" female NPT inlet options aswell as a optional Quick Connect Camlock Option for easy removal. The other side is 1.5" male outlet. A red urethane finish adds protection and visibility, while the NEMA 4-sealed design helps protect the internal electronics from the elements.

For simple operation, the monitor uses 12 or 24 VDC power and plug-and-play CANbus communication. The fully proportional joystick provides smooth control of monitor movement and includes a trigger for water valve operation. With adjustable electronic travel stops and three field-Specifications

High-capacity 500 GPM water flow

200 PSI maximum pressure rating

Lightweight, corrosion-resistant aluminum construction

Stainless steel bearings and worm gears for dependable movement

Sealed internal electronics with no separate module required

Joystick control with integrated water valve trigger

Three selectable travel range settings for flexible installation

Manual override for backup operation

Flow Rating

500 GPM / 1900 LPM

Maximum Pressure

200 PSI / 14 BAR

Outlet

1.5" male outlet

Inlet Options

1.5" FNPT or 2.0" FNPT

Construction

Durable lightweight aluminum

Waterway

Teflon-impregnated, hard-anodized aluminum alloy

Finish

Red urethane coating

Bearings

Double ball races with stainless steel bearings

Gear System

Fully enclosed stainless steel worm gears

Manual Override

Manual travel override capability

Enclosure Rating

Sealed to NEMA 4

Input Voltage

12 or 24 VDC, auto-compatible

Communication

Plug-and-play CANbus communication

Control Style

Fully proportional joystick control

Valve Control

Joystick includes trigger control for water valve operation

Electronics

Sealed inside the monitor body; no separate control module required

Electronic Stops

Adjustable vertical and horizontal electronic stops

The Elkhart Brass BrushHawk electric monitor is built for precise water truck spraying, roadway dust suppression, construction equipment, and remote washdown systems.
